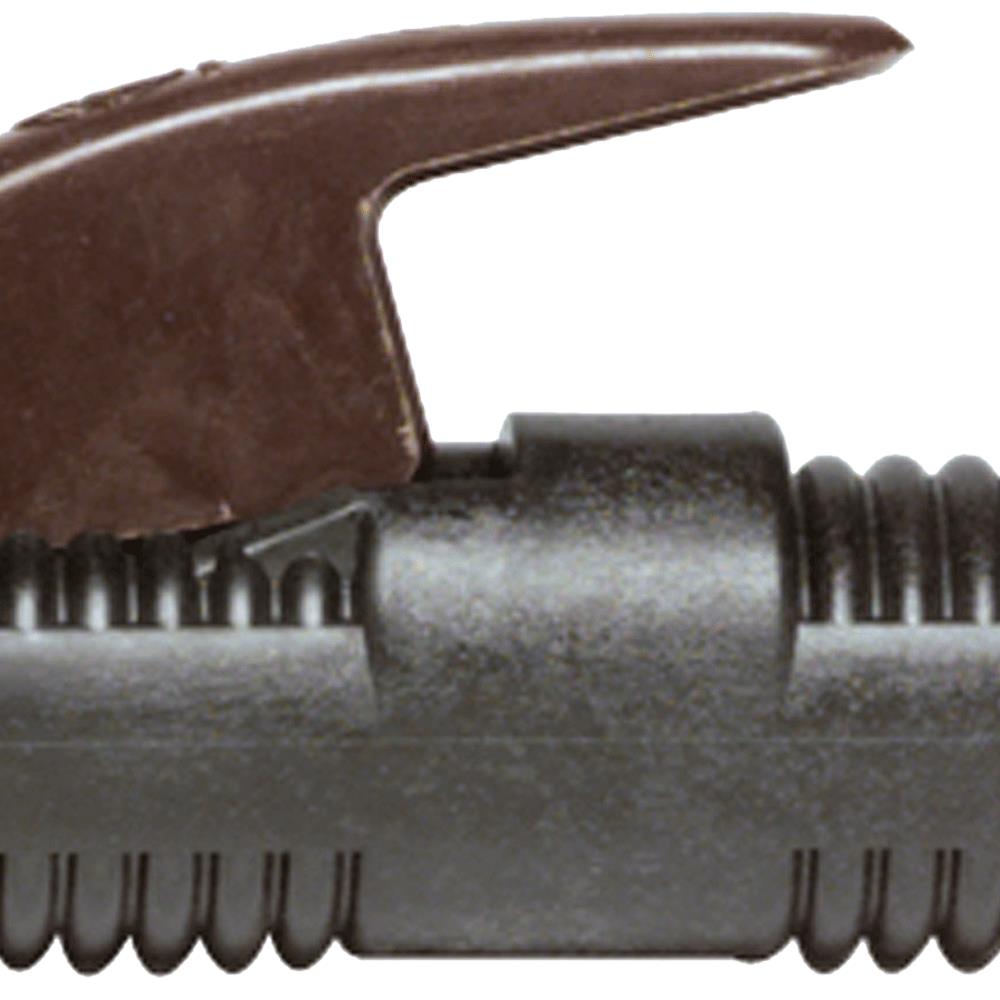

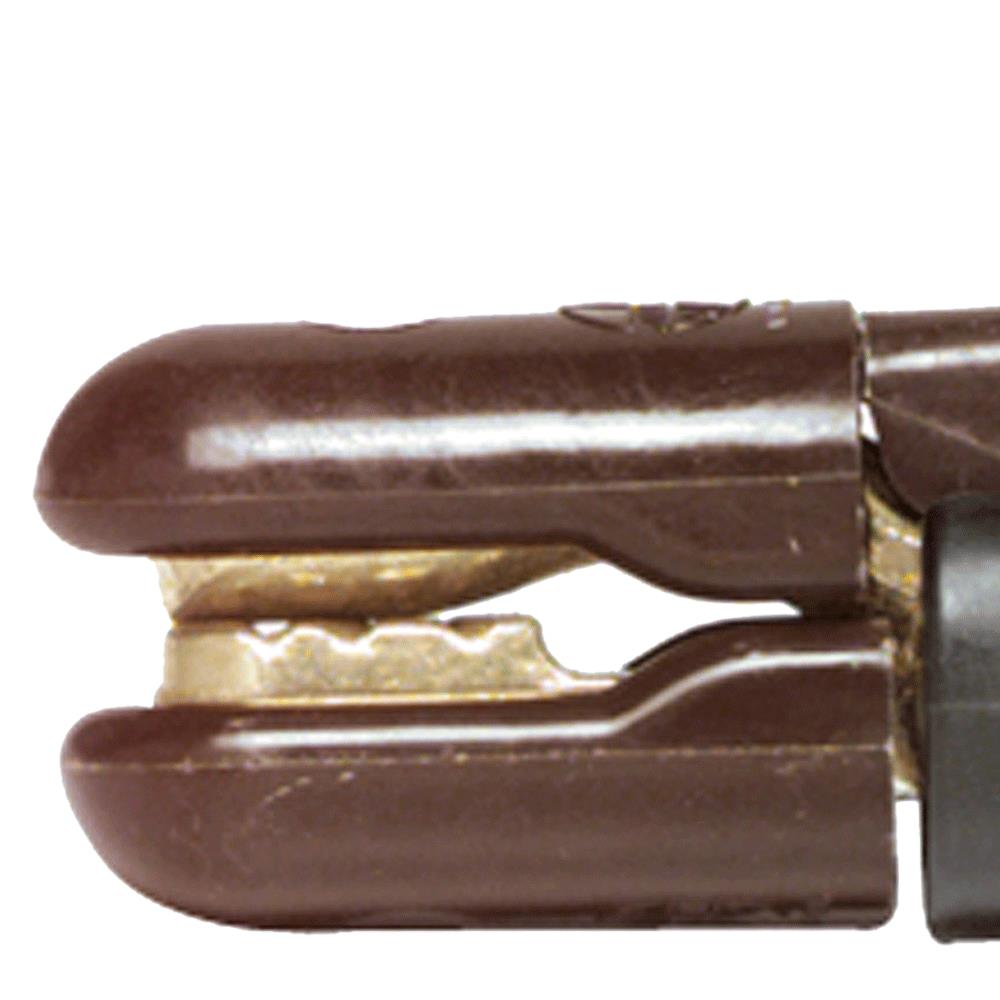

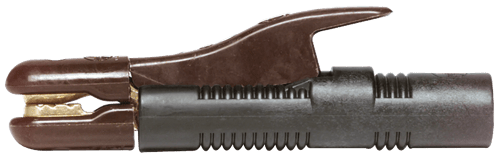

Electrode Holders - 3/16"

14679







Jackson® Safety Welding Electrode Holders are ergonomically designed with an integrated jaw for convenient and angled holding. The fully inserted pivots and springs provide maximum dielectric integrity. Jaws are made from JH-1 copper alloy material an extended handle with integral grooves helps improve the grip of these medium duty welding electrode holder.

  • Design: Ergonomically designed with an integrated jaw for convenient and angled holding; The fully inserted pivots and springs provide maximum dielectric integrity
  • Maneuverability: Made from JH-1 copper alloy material an extended handle with integral grooves helps improve the grip of these medium duty welding electrode holders
  • Connection: Jackson Safety offers a large dome screw cable connector for a near unbreakable connection with an 3/16" electrode capacity
  • Technical Specifications

Amp Rating250 Amperes
Cable Connection Capacity4 through 1/0
Duty Cycle Rating50%
Duty LevelMedium Duty
Electrode Body AlloyCopper
Electrode Capacity3/16"
Product Weight (oz)12
Country Of OriginChina

Replacement
