312 Series Premium Arc-Flash-Rated Face Shield Window - 8" x 15" x .060" - Uncoated

S312
S31220





Learn more about Sellstrom

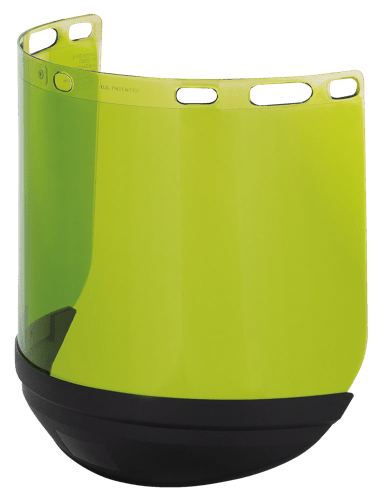

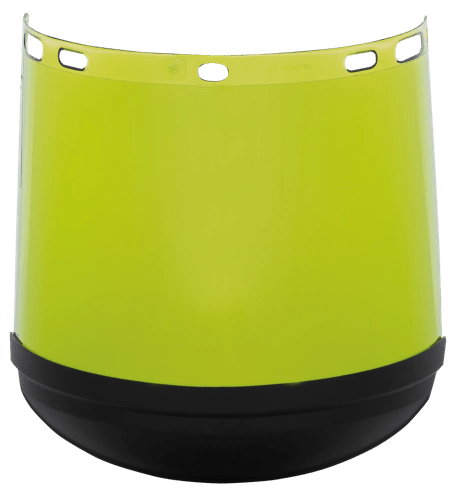

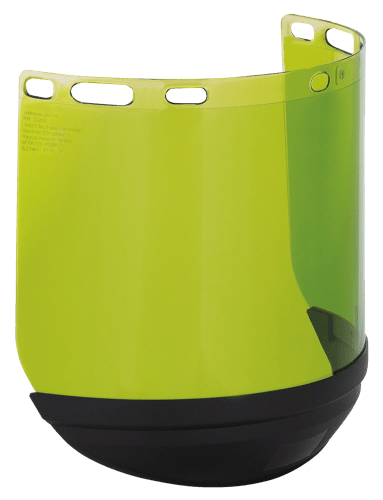

The Sellstrom® 312 Series Premium Arc Flash Rated Molded Polycarbonate face shield windows are designed for use with Sellstrom® 301 Series and universal pin mount crowns. The molded window provides optimum clarity with no distortion and panoramic vision. Specially formulated window incorporates a light green tinted window that allows 55% light transmittance and true color optics. These true color optics allow the operator to see all colors perfectly. This is critical when working around color coded wiring in electrical applications.

  • Use With: Universal hole pattern enables these windows to fit in a wide variety of face shields ane Sellstrom 301 Series crowns
  • Measures: Window dimensions measure; 8” x 16” x .040”
  • Material: Clear molded acetate window with anti-fog coating
  • Certified: Meets ANSI Z87.1+ High-Impact standard
  • Technical Specifications

AttributesLatex-free, Recyclable, Reusable, Dielectric
Bound TypeUnbound
StandardsANSI Z87.1+High Impact
Chin GuardYes
Chin Guard ColorBlack
Crown MaterialNylon
Face Shield System StyleSingle Crown w/Chin Protector
TypeWindow
MoldedYes
ProtectionArc Flash, Cutting, Splash, UV-A, UV-B, UV-C
ShapeT
Window CoatingUncoated
Window Dimensions (in.)8" x 15" x .060"
Window Material9.9 Cal/cm² molded Polycarbonate
Window Thickness.060"
Window TintGreen
